LASER ALIGNMENT

The complete laser alignment system for
. shaft alignment
. bore & bearing pocket alignment
. straightness/flatness measurement

Rotalign PRO delivers for all applications
. Single laser/receiver technology
. S-axis detector with electronic inclinometer
. Measure with a high degree of accuracy and repeatability
. Resume functions and re-usable measurement files
. Direct connection to standard office printer

click on image to enlarge

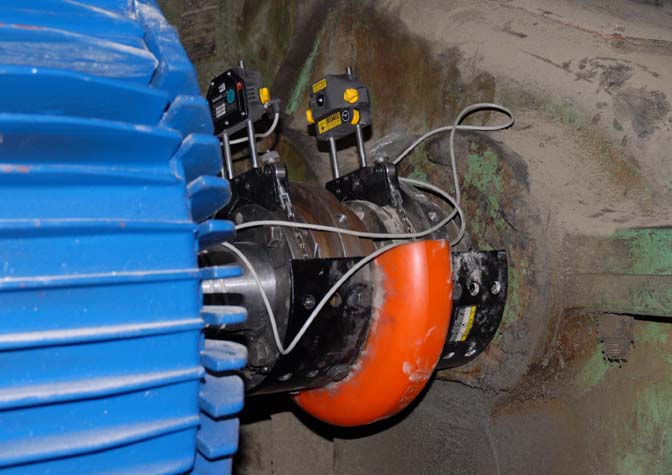

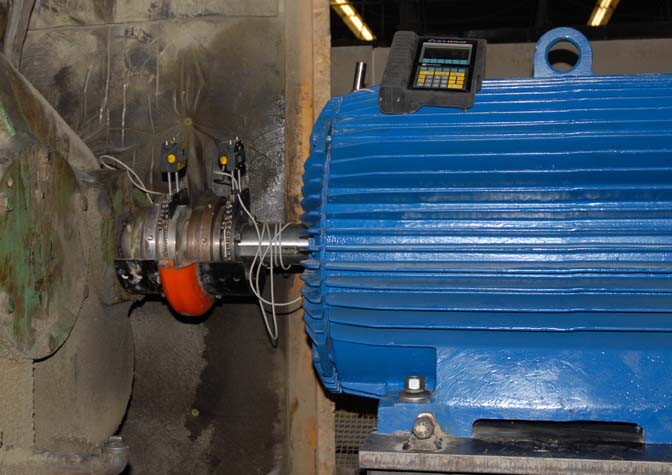

Application 1: Laser shaft alignment
. Eliminate possible user error with patented automatic continuous sweep measurement
. 3 or more measurement points over 60 degrees for even higher accuracy
. No limitation of measurement range due to infinirange technology
. Clear on-screen machine representation and auto-scaled graphical results
. Simultaneous, horizontal, and vertical live move
. On-screen Dynamic Tolerances for both coupling & foot values active during live move
. Alignment of 6 connected machines possible
. Cardan shaft alignment with high quality bracket option

click on image to enlarge

Application 2: Alignment of bore and bearing
. True measurement of bores at any 3 or more points by rotating receiver
. Out-or-roundness and incorrect measurement point automatically identified
. Alignment of bores to shaft axis
. No possible user error in measurements and results
. Optimization of results for 1, 2 or all the measurement points
. Live simultaneous horizontal and vertical move
. 3D graphical representation of the results

click on image to enlarge

Application 3: Straightness and flatness
. X & Y coordinates measurement positions possible
. High number of measurement positions possible
. Reference points are user defined
. 3D graphical representation of the results
. Live simultaneous horizontal and vertical move
. Measurement bracket can be adapted to customer requirement

click on image to enlarge
